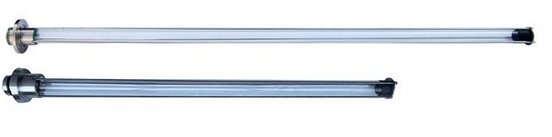

Safety bracket for the product families PURION UV-Set 36 W, PURION UV-Set 90 W and PURION Weld In UV Sets facilitates and enables installation in horizontal position and without additional counter support for vertical installation. This stabilization makes new applications possible.

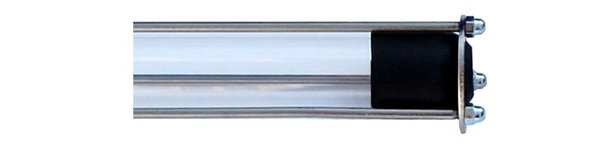

The safety bracket consists of three stainless steel support rods that are firmly connected to the head section. On the opposite side, the brackets are firmly screwed to a stainless steel retaining ring. This special bracket does not exceed the diameter of the headboard. This bracket can therefore also be retrofitted to existing installations.

The safety bracket is particularly important for use in tank sterilization.

Another advantage:

The lamps can still be replaced in the usual way. The compact design allows easy and tool-free lamp removal and lamp replacement, for example at the end of the lamp's service life.

These PURION UV sets can be delivered with a safety holder:

Headboard safety bracket

Counter bearing Safety bracket
