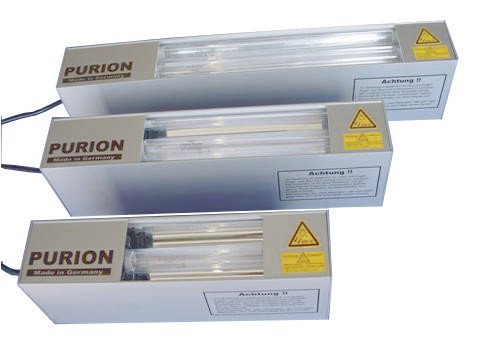

This device consists of a matt anodized aluminium profile with matching cover plates. The spotlight compartment is fitted with a reflector made of pure polished aluminum. The cabling and the electronic ballast are located in the rear section.

On request, handles for manual handling or fixings for wall or ceiling mounting can be attached to the rear.

As an option, lamp failure or cable breakage can be monitored internally. A potential-free contact linked to this can be used for external signaling or for switching operations.

The UV lamps used are characterized by a long service life, high disinfection performance and low energy consumption. The power supply can be either 230 V/50 Hz or 110 V/60 Hz.

The compact design allows easy and tool-free lamp removal and lamp replacement, for example at the end of the lamp's service life.

ATTENTION!

UV radiation is dangerous for skin and eyes! Eyes and skin must be protected accordingly. The user is responsible for his own safety and the safety of people in the room where these lamps are used.

Please note that materials that are not stable against UVC can be damaged.

Technical Data

For cleaning the immersion tube system, we recommend the PURION Service KIT.

PURION Service KIT

This system is used for:

• Air Disinfection
• Surface Disinfection
• Conveyor Belt Disinfection

Advantages:

• No chemical additives
• No odor interference
• Low maintenance operation
• Low operating costs

Download Datasheet

DATASHEET AIRPURION 17 HUM X SHORT SPL
