PURION AUQA ACTIVE

PURION® UV systems are characterized by an extraordinarily high disinfection performance with a compact design and low energy consumption. They are designed in accordance with applicable laws, standards and directives.

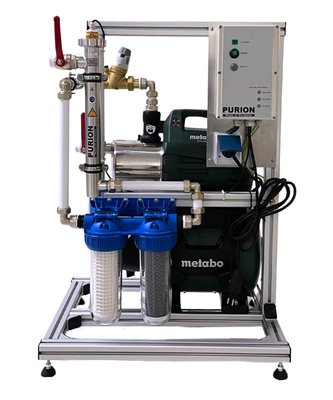

The PURION AQUA active system is a pre-assembled system consisting of filtration and UV-based disinfection as well as a high-quality domestic waterworks from metabo. It is used for the treatment of rainwater and drinking water.

The upstream domestic waterworks ensures constant water pressure. The additional pressure reducer enables flexible regulation of the water pressure. Pre-assembled stopcocks and a non-return valve guarantee safe and reliable operation.

The subsequent pre-filtration and UV-based disinfection enables the water to be treated. The UV system is equipped with a lamp life monitoring system (OTC).

The PURION UV lamps used are characterised by a long service life, high disinfection performance and low energy consumption.

The compact design allows easy and tool-free lamp removal and lamp replacement, for example at the end of the lamp service life.

Technical Data

Manufacturer	PURION GmbH
Type	PURION AQUA active
Flow Rate: 4 log Reduction 99.99% 1-2 log Reduction 96-99%	1000 l/h 4000 l/h
UVC Transmission	90% T1 cm
Dimensions L x W x H in mm	660 x 500 x 930
Weight (without water)	40 kg
UV System	PURION 1000
Lamp Lifetime	10,000 h
Monitoring Option	OTC
Pre-filter	1 x 60 µm 1 x Activated Carbon
Home Water System	metabo HWW6000/25 INOX
Temperature Range	2 – 40°C
Connection	R 1“
Electrical Connection	220 - 240 V
Electrical Power: PURION 1000 HWW6000/25	17W 1300W
Enclosure Protection Class	IP 65
Protection	16A

For cleaning the immersion tube system, we recommend the PURION Service KIT.

PURION Service-KIT

Advantages:

Plug and play solution for easy installation
Self-supporting system
Integration of all components for professional water treatment and UV disinfection
Low maintenance operation
