PURION® Pool Premium PVC-U

PURION® UV systems are characterized by an extraordinarily high disinfection performance with a compact design and low energy consumption. They are designed in accordance with applicable laws, standards and directives.

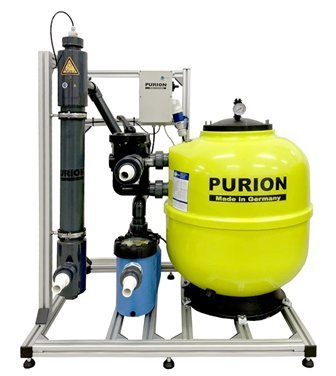

The PURION POOL Premium PVC-U system consists of filtration and UV-based disinfection of the pool water. It is used to sterilise circulating pool water.

The upstream filter unit with ‘top mount’ 6-way valve consists of a filter tank made of high-quality, glass fibre-reinforced polyester. This is filled with activated filter granulate made of special quartz. This pre-filter removes existing turbidity from the water. The subsequent UV-based disinfection prevents biological activity - in particular the formation of algae. A self-priming Speck Badu Prime pump is used for this.

Compared to conventional chemical treatment of the water, up to 95% of the chemicals used can be dispensed with. The PURION UV lamps used are characterised by a long service life, high disinfection performance and low energy consumption. The compact design allows easy and tool-free lamp removal and lamp replacement, for example at the end of the lamp's service life.

Technical Data

Manufacturer	PURION GmbH
Type	PURION POOL Premium PVC-U
Pool Size	80 m³ (with 3 x daily circulation)
Dimensions L x W x H in mm	1200 x 800 x 1200
Weight (without filter tank filling)	ca. 60 Kg
UV System	PURION 2501 H PVC-U (106 W)
Application Area	can be placed up to a maximum of 3 m above or below the water level
Temperature Range	2 - 40°C
Flow Rate: Pumpe Speck Badu Prime	15 m³/h at head¹ 12 m
Working Pressure	2 bar
Amount of Special Quartz	175 kg
Light Source Lifetime	10,000 h
Filter Tank Material	high-quality fiberglass-reinforced polyester
Filter Tank Valve	top mount 4-way valve
Connection	Stepped nozzle D 40/32
Filter Medium	AFM active
Housing Protection Class	IP 54
Filter Tank Volume	186 l
Pump Power Consumption	1.3 kW/h
Electrical Connection	110-240 V 50/60 Hz
Protection	10 A
